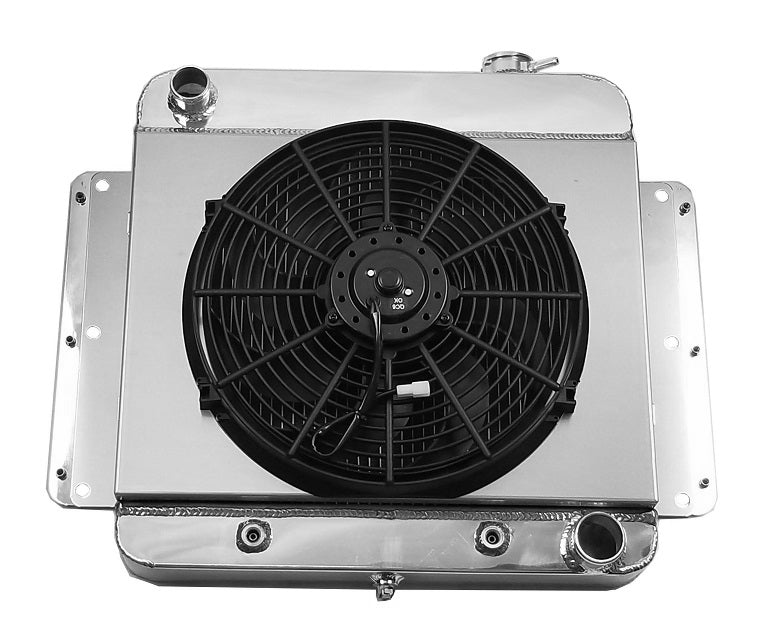

1962-1965 Chevy Nova 2-Row Radiator, Shroud, Fan Combo - 6 Cyl - Champion Radiator

Radiator Dimensions:

Total: 22.13" tall(including petcock & cap) (19.75 Tank to Tank) x 24.5" wide (including brackets)
Core: 14.13" tall x 18.13" wide x 1" thick
Inlet: 1.25" driver side
Outlet: 1.75" passenger side
Tanks: 2." thick
Tubes: 0.63" thick

Total Thickness: 5.5" to back of fan

Whats Included

14" Fan
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Aluminum shroud

SPAL High Performance Series -2044
13" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 14.17"
B: Depth 3.45"
C: Width 13.62"

CFM: 1777
AMP Draw: 19.5 Amps

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
