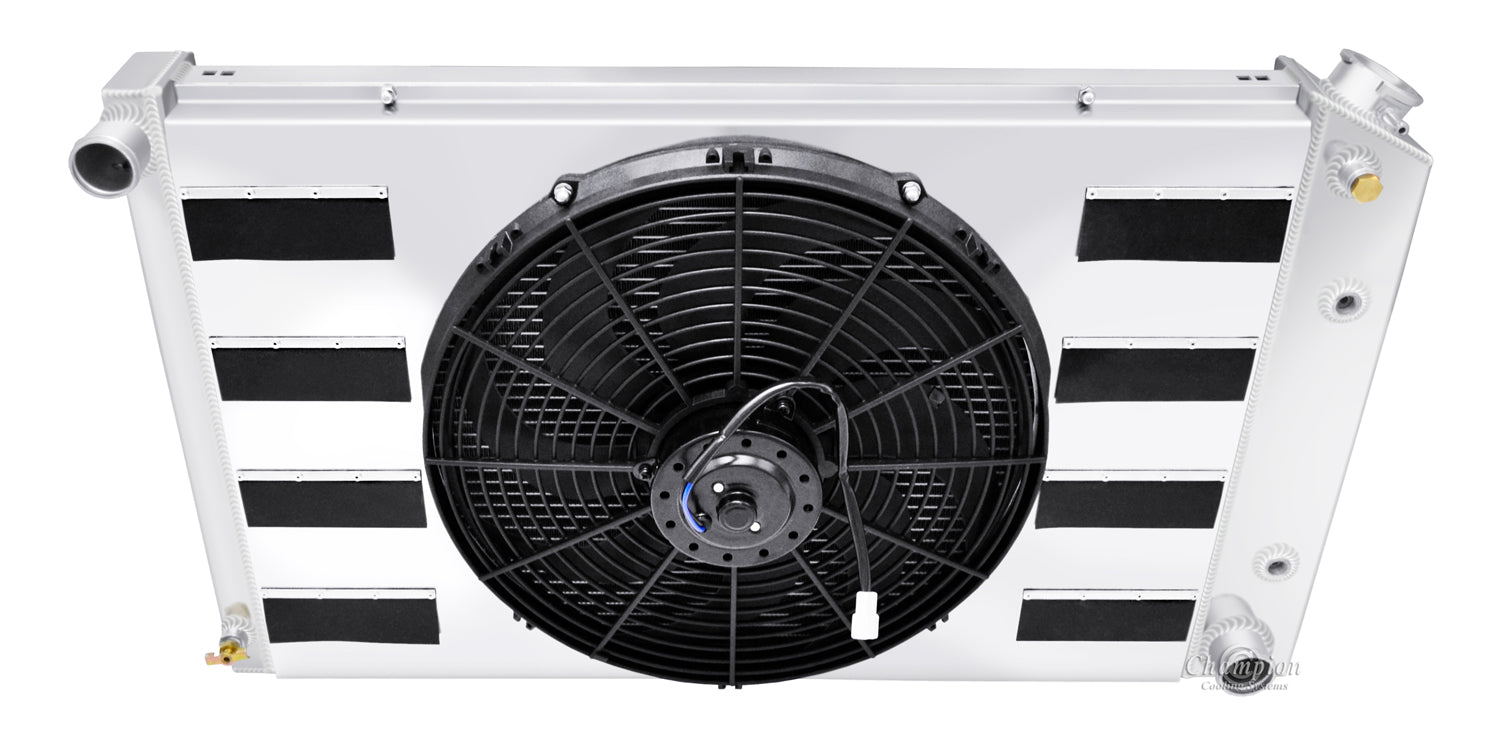

1970-1981 Pontiac Firebird / Trans Am 2-Row Radiator, Shroud, Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 18.38" tall x 32.5" wide
Core: 17" tall x 27.5" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 5.75"

Whats Included

16" Fan
Saddle Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Aluminum shroud
NOTE: this shroud is not part of the radiator mounting system. Installation modifications may be necessary.

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
