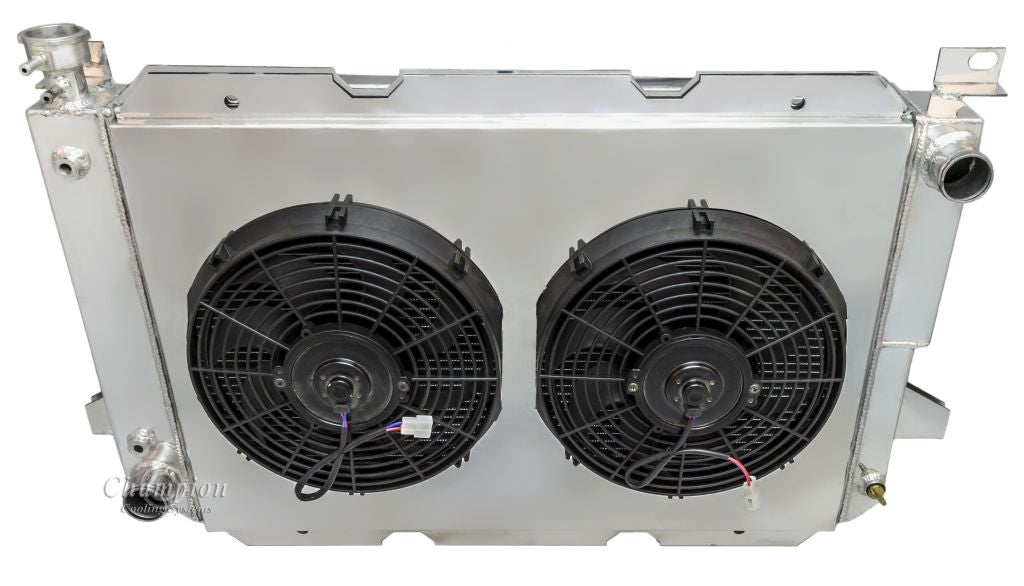

1985-1997 Ford Bronco 4-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 22.25" tall (with cap) x 37.25" wide
Core: 18" tall x 28.13" wide x 2.75" thick
Inlet: 1.75" passenger side
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick

Total Thickness: 6.5" (5.5" between fan motors)

Whats Included

- 14" Fans
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/4-18NPT)
- Aluminum shroud

SPAL High Performance Series -2044
13" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 14.17"
B: Depth 3.45"
C: Width 13.62"

CFM: 1777
AMP Draw: 19.5 Amps

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
