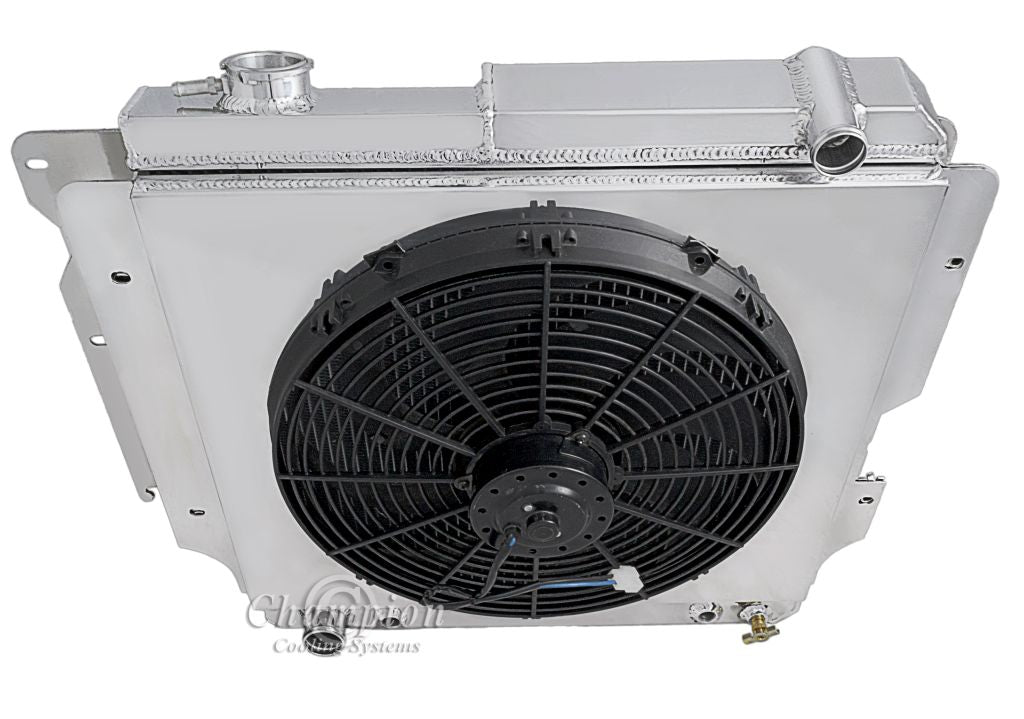

1987-2006 Jeep Wrangler 4-Row Radiator, Shroud, Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 23.5" tall x 25.5" wide x 3.13" deep
Core: 18.5" tall x 20" wide x 2.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6" between fan motors)

Whats Included

16" Fan
Bracket Mounted - Rivet Nuts in shroud bracket: Size M6
13lb. Radiator Cap included
Transmission Cooler Included (M16-1.5)
Aluminum shroud

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
