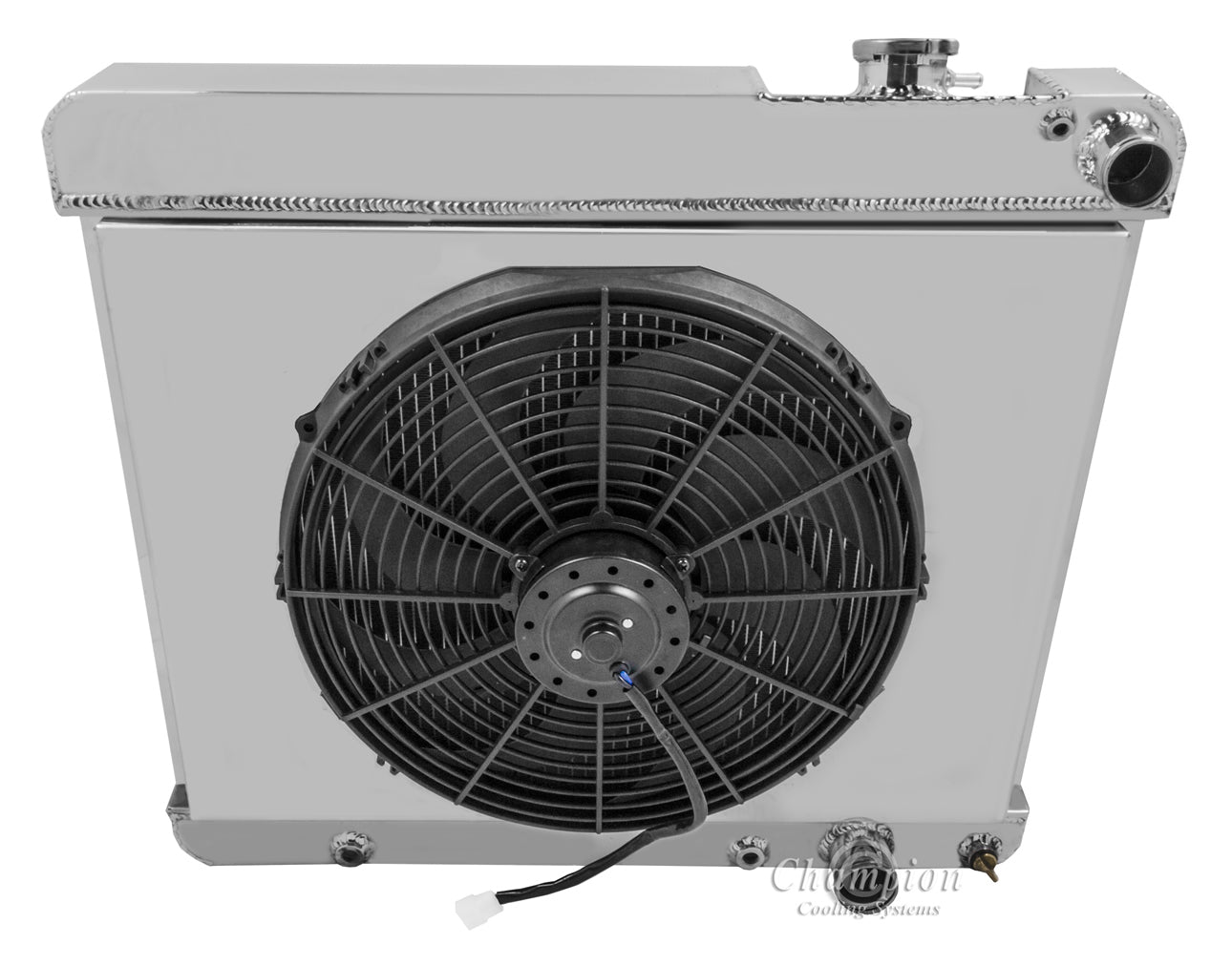

1960-1965 Cadillac Deville LS Swap 4-Row Radiator, Shroud, Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.5" tall x 22.75" wide x 2.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Verify clearance for electric fan
Total thickness: 7" to fan motor

Whats Included

16" Fan
Saddle Mounted
13lb. Radiator Cap included
Aluminum shroud
Steam port added for LS Motors

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
