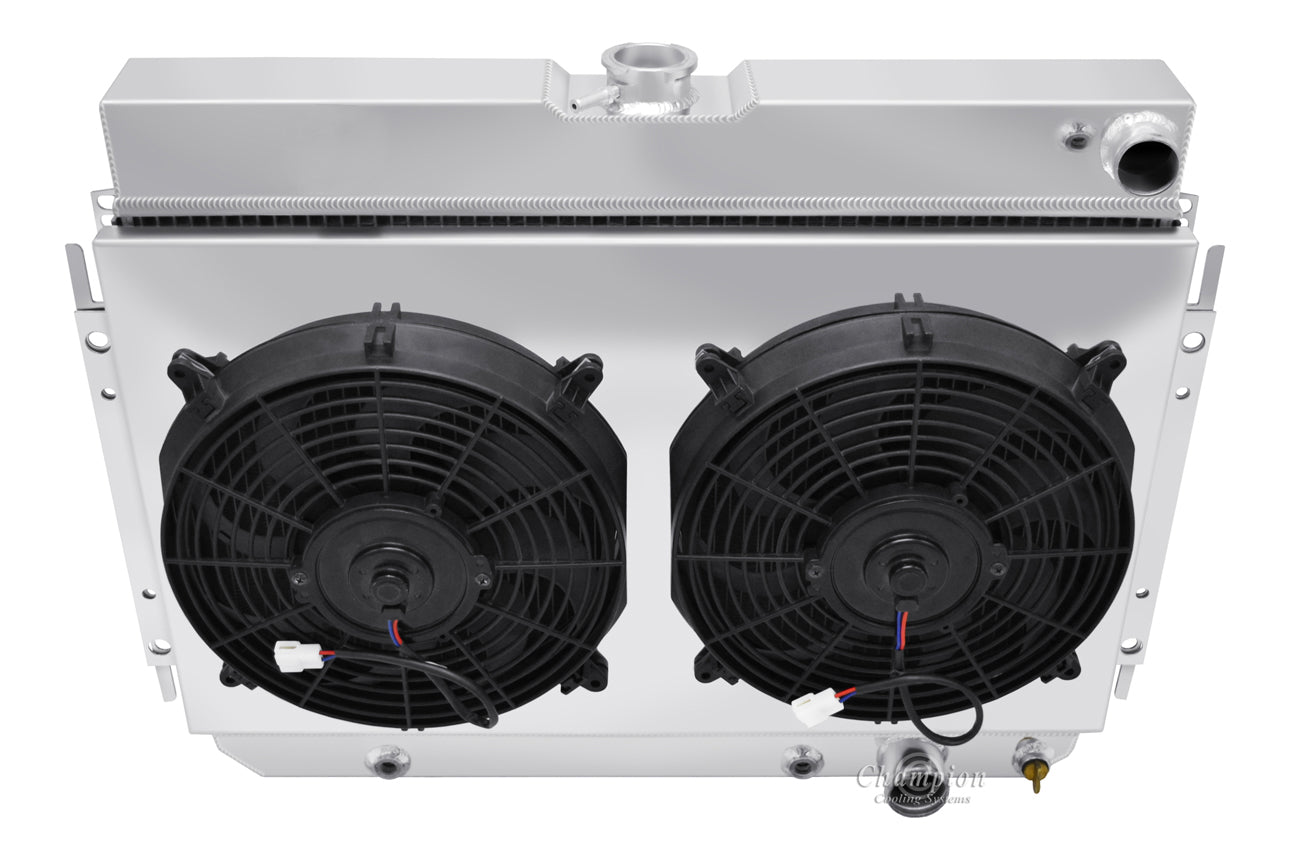

1964-1967 Chevelle LS Swap 4-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 21.75" tall x 28" wide (including brackets)
Core: 16.13" tall x 25" wide x 2.8" deep
Inlet: 1.25" Passenger side
Outlet: 1.50" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Total Thickness: 6.25" to back of fans, 5" at Center

Whats Included

12" Fans (850 cfm)
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Aluminum shroud
Steam Port added for ls motors.

SPAL High Performance Series -2029
12" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 13.03"
B: Depth 3.45"
C: Width 12.64"

CFM: 1451
AMP Draw: 14.5 Amps

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
