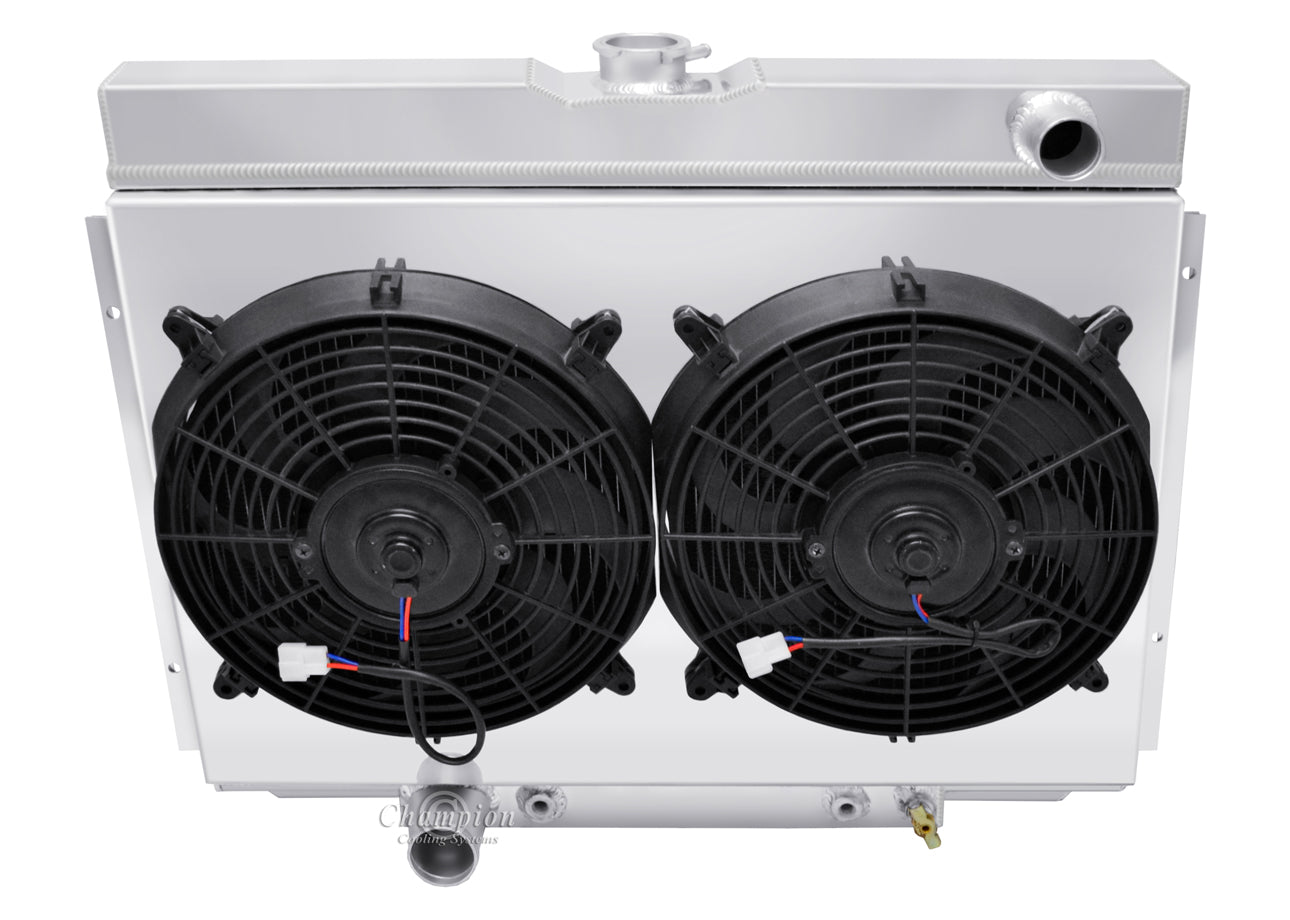

1966-1969 Ford Fairlane 4-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 20.88" tall (21.5" with cap) x 25.25" wide (including brackets)
Core: 16" tall x 24.25" wide x 2.75 thick
Inlet: 1.5" passenger side
Outlet: 1.75” driver side
Tanks: 3.13" Thick
Tubes: 0.63" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.05

This Radiator is slightly wide and shorter than the original. Please refer to the dimensions.

It does have the shaped lower tanks for the saddle mounts.

Whats Included

- 11" Fans
- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/8-27NPT)
- Aluminum shroud

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
