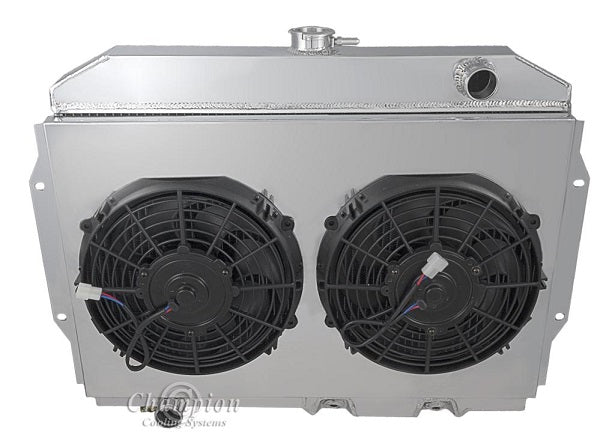

1968-1974 AMC Javelin 4-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 22" (23.13" w/fill neck) tall x 27.25" wide
Core: 15.88" tall x 24.13" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

*Verify clearance for electric fan
Total thickness: 6" to fan motor

Whats Included

11" Fans
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Aluminum shroud

SPAL Medium Profile Series -2054
11" Cooling Fan
Paddle Blade - Pull
Specifications:
A: Length 12.36"
B: Depth 3.75"
C: Width 11.93

CFM: 1375
AMP Draw: 18 Amps

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
