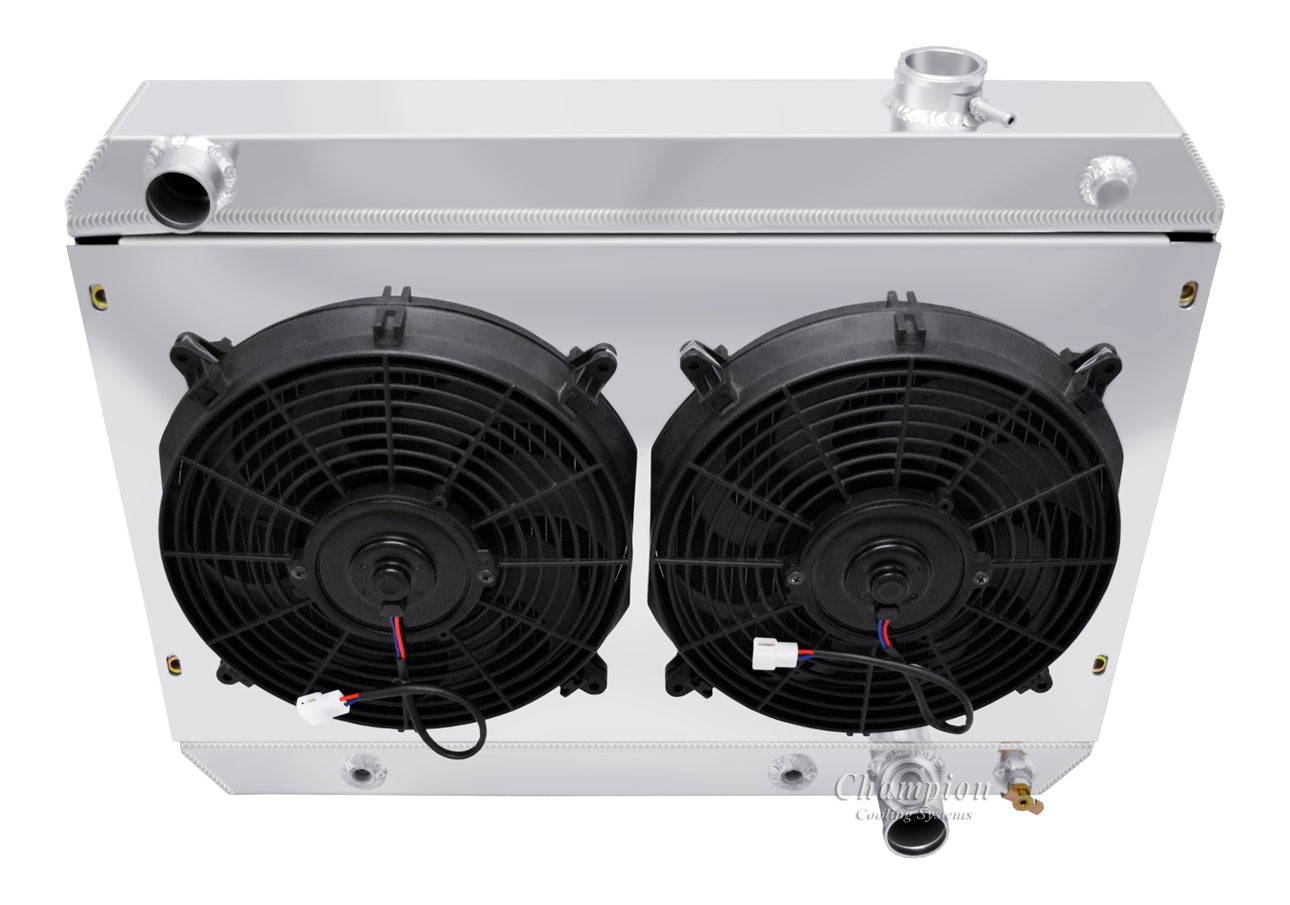

1962-1965 Chevy Nova 4-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 26.13" wide (with brackets) x 21.5" tall (with cap)
Core: 24" wide x 15.5" tall x x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Total Thickness: 6"
Radiator Thickness: 2.75"
Shroud Thickness: .5"
Fans Thickness: 2.75"

*Option: Thinner Fan Thickness 2.25"

Whats Included

- 12" Fans (900 Cfm Each)
- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
- Aluminum shroud

SPAL High Performance Series -2029
12" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 13.03"
B: Depth 3.45"
C: Width 12.64"

CFM: 1451
AMP Draw: 14.5 Amps

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
